Model : MPE-MB-DUE-V01
functionAL MAIN bOARD
2 Input /8 Output

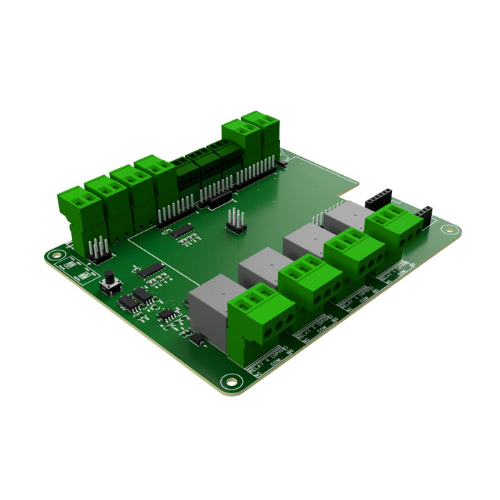

Product Description

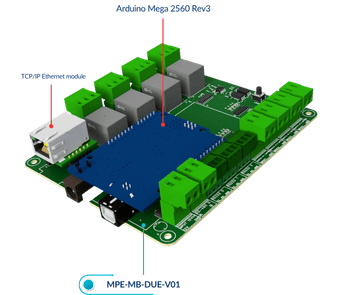

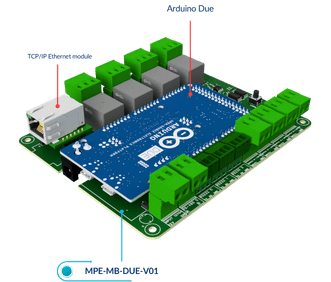

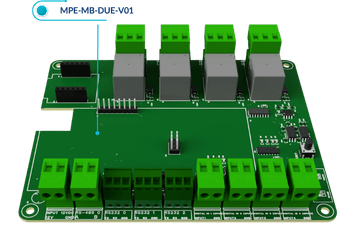

Shield board designed for use with Arduino platforms, compatible with Arduino MEGA 2560 R3, Arduino Due, and W5500 TCP/IP Ethernet module. Provides convenient power management, communication interfaces, and I/O expansion.
Key features
- Input Power: 6–20VDC (12VDC nominal, external supply)
- 4-channel GPIO inputs (pull-up)
- 4-channel relay outputs (GPIO controlled)
- 2 × RS232 channels
- 1 selectable interface: RS485 (auto direction) or RS232 (1 channel)
- Onboard reset switch
- W5500 Ethernet module support (WIZ820IO compatible)
- Dimensions: 111.11 × 135.07 mm

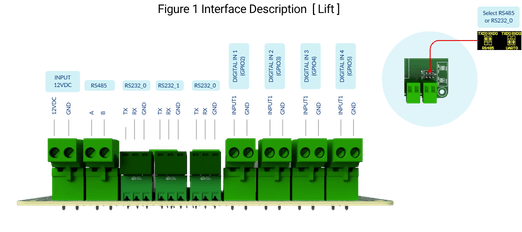

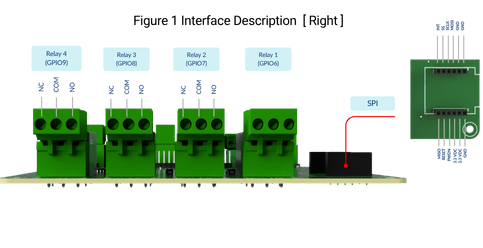

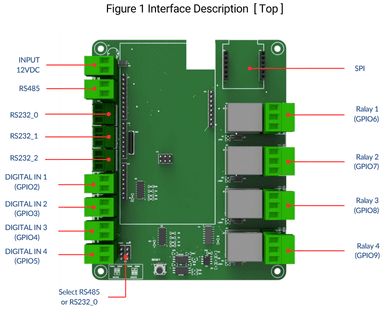

Interface Description
Placement recommendations
Board size and shape
Board thickness : h = 1.6 mm
Hole diameter : ø = 3.5 mm
